XZZ416 Vertical parting flaskless shoot squeeze molding machine
Molding line main components：

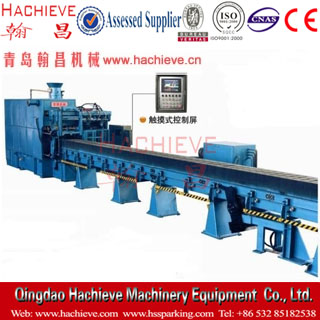

XZZ416(XZZ415)Vertical parting flaskless shoot squeeze molding line made up of Vertical parting flaskless shoot squeeze molding machine, translation type core machine, synchronous clamping conveyor, belt cooling conveyor, vibrating shakeout machine (or knockout machine), sanding machine and electric control, hydraulic, pneumatic control system。
The main characteristics of moulding line：
* uses the microcomputer control and electromechanical integration technology and standard of hydraulic and pneumatic control device, improves the molding machine running speed and accuracy.
* the man-machine conversation interface, in defining the scope of use, can be adjusted on the computer screen, set a variety of machine technical parameters.
* fault judging panel, through a series of sensing elements and a host computer system common fault diagnosis and alarm display.
* in the structure is convenient for adjustment and maintenance, the electrical control system realized the fault display and recognition and troubleshooting tips.
* with domestic similar styling lines compared, in automation control and electromechanical integration level, equipment operation reliability, simultaneous cooling cavity parts, wear resistance, a type of synchronous conveyer, meet the mechanical core, belt cooling, automatic sand sets of features, the standardization level and the maintainability of has obvious progress and advantage.
* vertical parting, no sand box, high voltage, high speed, continuous, automatic, hydraulic compaction of sand, applicable to all industries core coreless medium and small castings of efficient large-scale mass production.
* mold specifications in a variety of vertical parting molding line, share ratio of the largest, most widely used.
* high productivity, high precision casting size, small noise, low labor intensity, simple, less auxiliary lines, covers an area of small, process and low construction investment, energy saving, is currently the most advanced wet molding line.
Molding line Technical parameters：
|
Sand model size（W*H*T）mm
|
600*480*120-330
|
|
Productivity mode/h
|
240、300(T 180mm) 220-280（Mechanical discharge core）
|
|
Shooting pressure Mpa
|
0.25-0.3
|
|
Compaction pressure ratio Mpa
|
0-2.0(Continuously adjustable)；Suggest1.0-1.2；Max（Calculated value）2.5
|
|
The average thickness of the mode
|
>80
|
|
Sand molding Precision mm
|
0.1-0.14
|
|
Mechanical discharge core Precision mm
|
≯0.2
|
|
sand consumption t/h
|
15-37
|
|
Synchronous clamping conveyer length m
|
12；18
|
|
Maximum working pressure Mpa
|
10
|
|
Compressed air pressure Mpa
|
0.55-0.65
|
|
Maximum consumption of compressed air m3/min
|
4*1.5
|
|
Total motor power(host machine) KW
|
37
|
|
Synchronous clamping conveyer KW
|
22.5
|
|
Cooling water flow L/min
|
75-100
|
|
host machine Outline（L*W*H）mm
|
5536*1292*3465
|
