Shot blasting machine for Construction machine

Click to englarge
Shot blasting machine for Construction machine
Product Lablel: Shot blasting machine for Construction machine
Product Model: Shot blasting machine for Construction machine
Product Type: Shot blasting machine for Construction machine
Click: 14143
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction

Overhead Hanger/Hook Type Shot Blasting/Peening Machine/Equipment/Abrator/Blaster


Product Description

 Features:

         1.This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.

        2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.

        3. No special request for the workpiece structure. Can be used for different kinds of workpieces.

Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.


Spinner hanger type Shot Blasting Machine is design to handle mix load of medium & large components including fragile & irregular shapes. Small components can also be cleaned by loading into carrier basket. Various work handling schemes like Straight, Tee, Y and continuous loop is possible. Machine can handle load up to 5000 kg/hanger or more.


Ideally suitable for Blast Cleaning, Castings like Cylinder Blocks, Cylinder Heads, Tractor Components, Diesel Engines, Railway bogie bolster & Fabricated Transformer Tanks etc.


We offer following y type hanger shot blasting machine:

Rotary hook type shot blasting machine Technical Parameter:

Item

Unit

Q376

Q378

Q379

Q3710

Q3720

Q3730

Q3750

Q3780

Diameter

mm

Ø600

Ø800

Ø800

Ø800

Ø1400

Ø1600

Ø1800

Ø2000

High

mm

1100

1500

1600

1850

2300

2200

2500

3000

Load capacity of single hook

kg

600

1000

1000

1000

2000

3000

5000

8000

Abrasive flow rate

kg/min

120*2

160*2

250*2

250*2

250*3

250*3

250*4

250*4

Cleaning times

min

16

14

14

14

14

14





Elevating amount

t/h

15

20

30

30

45

45

60

60

Separating amount

t/h

15

20

30

30

45

45

60

60

Ventilation capacity

m3/h

2800

8300

8300

9000

15000

15000

18000

18000

Power(no dust collector)

kw

22

30

37.4

36.55

61.27

64.4

78.4

81.5

More other special machines available to suit customer's specific requirements.


Hook Through-type abrator technical parameters:

Item

Unit

Q3720

Q3730

Q3750

Q3780

Workpiece Length

mm

Arbitrary

Arbitrary

Arbitrary

Arbitrary

Workpiece Width

mm

<5000

<5000

<5000

<5000

Workpiece Height

mm

<5000

<5000

<5000

3000

Load capacity of single hook

kg

2000

3000

5000

8000

Abrasive flow rate

kg/min

250*Blast wheel quantity

250*Blast wheel quantity

250*Blast wheel quantity

250*Blast wheel quantity

Cleaning speed

m

1~4

1~4

1~4

1~4

Elevating amount

t/h

Non-standard

Non-standard

Non-standard

Non-standard

Separating amount

t/h

Non-standard

Non-standard

Non-standard

Non-standard

Ventilation capacity

m3/h

Non-standard

Non-standard

Non-standard

Non-standard

Power(no dust collector)

kw

Non-standard

Non-standard

Non-standard

Non-standard





Construction machinery shot blasting machine

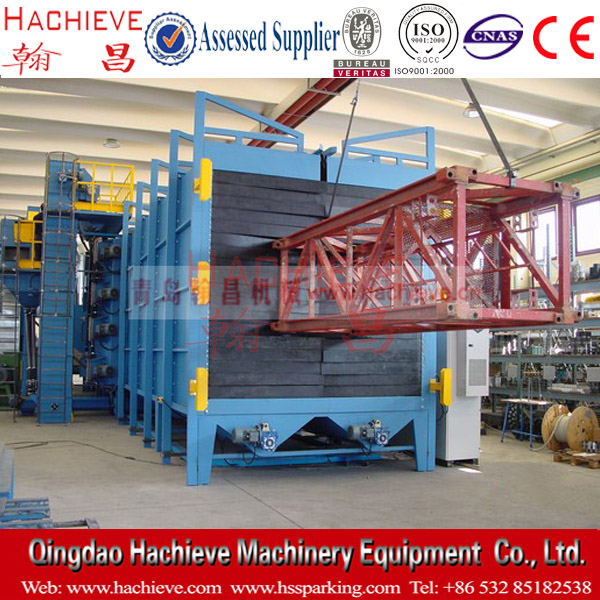

Before shot blasting

\

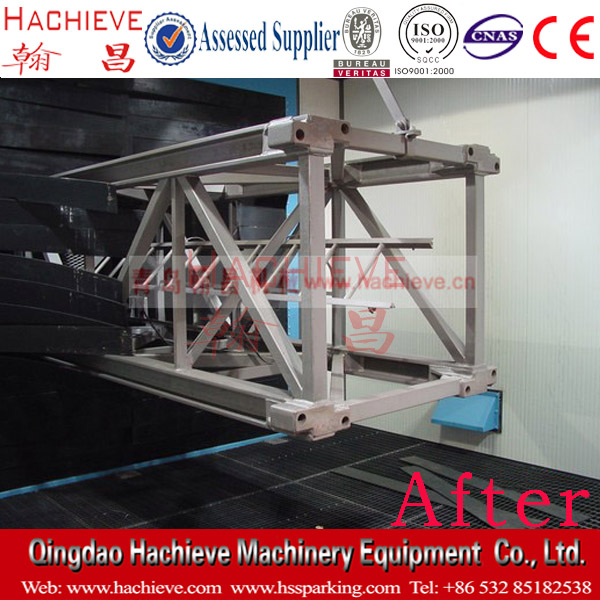

After shot blasting
