Hanger stepping shot blasting machine

Click to englarge
Hanger stepping shot blasting machine
Product Lablel: Hanger stepping shot blasting machine
Product Model: Q38/Q48/Q58
Product Type: Hanging chain type
Click: 24475
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction
Video(Click)

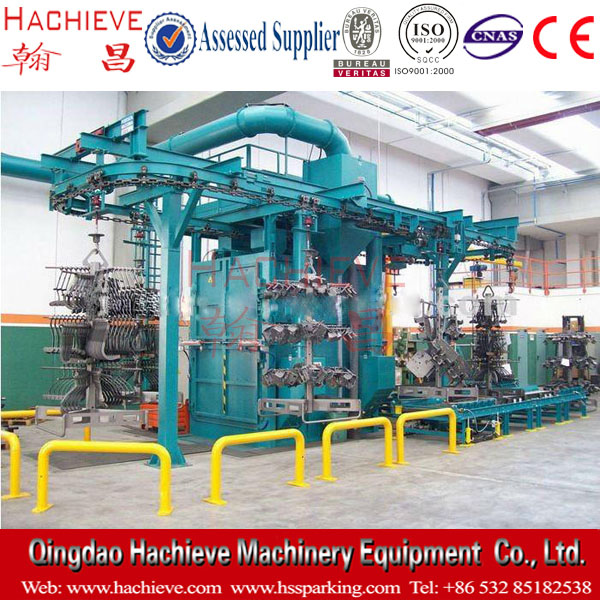

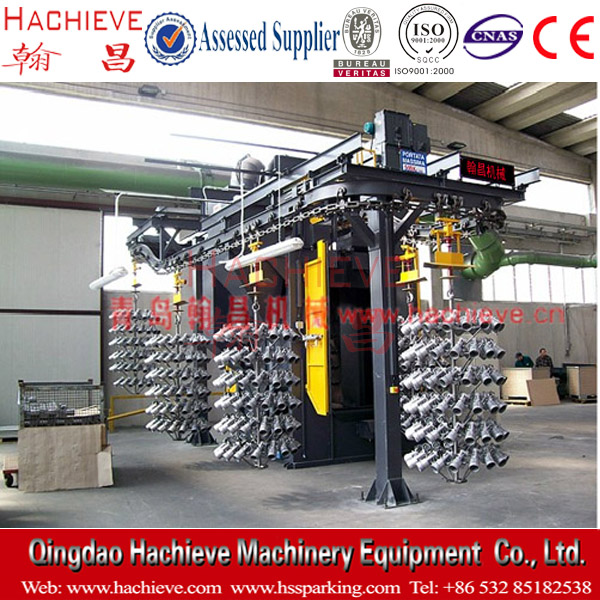

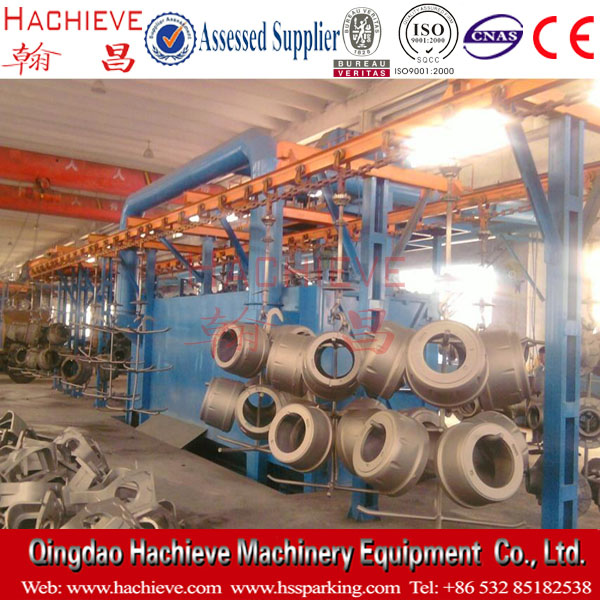

Q38 Series Hanging Chain  Shot Blasting Machine



  This machine has high production efficiency, also suitable for mass production of small and medium sized castings, forging and heat treatment of a surface to clean up or strengthened, particularly for automobiles, tractors, diesel engines, motors, valves, and other industrys



 Q48、Q58Chain step type  is suitable for cleaning of steel castings, forgings, mass production, as a result of step methods, improve the utilization and productivity of projectile, on the surface and inner cavity of the more complex work, such as engine cylinder cover and the motor Shell cleaning .


This series hook type shot blast cleaning machine, is mainly used for casting, structural, non-ferrcus alloy parts and other parts of the surface cleaning, shot blasting cleaning machine of this series at a single hook, double hook-type, , lifting style and many other models. It has the advantages of not pit, compact structure, and high productivity.


This Type shot blasting machine Technical:

Item

Unit

Q383C

Q384C

Q385C

Productivity

Hook/h

50,65 38,49

70,80

75

Hook running speed

m/min

0.5,0.65

0.8,0.93

0.65

Single hook Loading

kg

250

400

500

Hook distance

mm

600,800

800

800

Abrasive follow rate

kg/min

4×250

6×250

5×250

Total ventilation

m3/h

18000

26500

23700

Workpiece Size

mm

Dia. 500×1200,

Dia. 700×1200

Dia. 700×1500

Dia. 700×1500

Outline dimension

mm

11764×5525×8254

15308×14706×9542

11783×10063×7500

The depth of the pit

mm

2070

2667

1700

Power consumption

kw

75.3

122.6

106.75

Total Weight

Kg

19370

53600

31877
