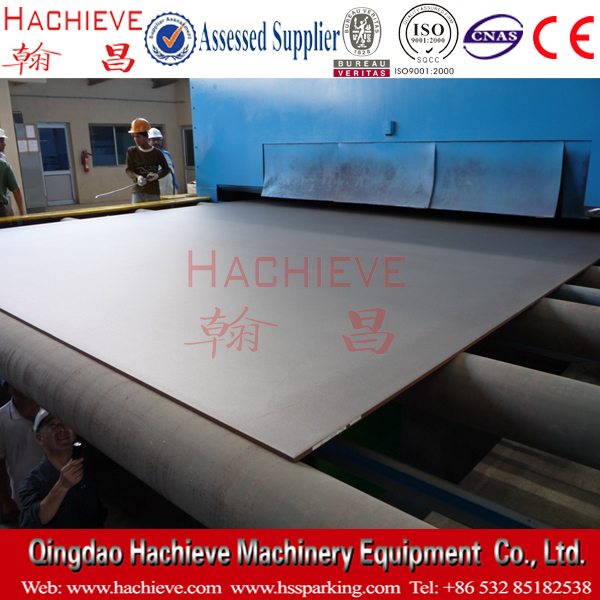

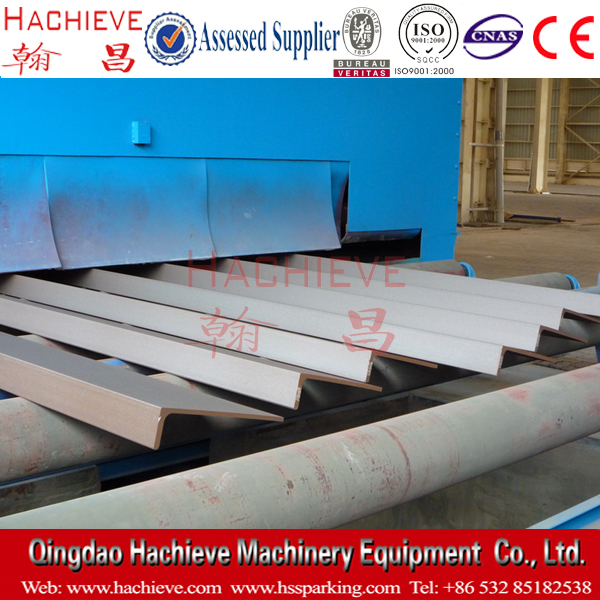

Steel line shot blasting, painting and drying production line

Product Lablel：

Steel line shot blasting, painting and drying production line

Product Model：

Steel line shot blasting, painting and drying production line

Product Type：

Steel line shot blasting, painting and drying production line

Click：

14386

Counsulting：

VIP Free Hotline：
400-008-0910

Equipment counsulting hotline：
0532-86110910

Order：

Introduction

Our company designs and manufacture the steel pretreatment line according to the uesrs’ requirements as well as the specific dimension of the steel plate。

QXY steel plate pretreatment line is a processing which blasts and cleans the surface of the steels materials before any treatment (raw materials) and then coats them with a layer of protective primer. It improves the corrosion resistance of the mechanical products as well as metal components; it also improves the fatigue resistance of the steel plates and extends its service life. Meanwhile, it can optimize the state of the steel surface and is to the benefit of a NC cutter in the cutting and precision blanking. Besides, thanks to the regular shape of the steel material before processing, it is conductive to the mechanical rust removal as well as automatic painting. Therefore, the adoption of pretreatment line will greatly improve the efficiency of the clean-up work and reduce the labor intensity as well as the environmental pollution

1. Q69 Series shot blasterTechnical

Parameter	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
The effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
Dimesion of inlet opening	1600*800	1200*400	1700*400	2200*400	2700*800	3200*800	4200*400
The length of cleaning workpiece(mm)	1200-12000	1200-1600	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
The speed of conveyer(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thickness of cleaning steel sheet (mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Shot ball flow rate (kg/min)	4*120	4*250	4*250	6*250	6*250	6*360	8*360
The shot ball first loading (kg)	4000	4000	4000	4500	4500	8000	11000
Roll brush adjusting height (mm)	200	200	350	450	600	850	900
Air capacity(m3/h)	22000	17560	19000	19550	27758	28050	38000
Total power (kw)	90	78.3	113.5	156.6	204.8	224.55	293.6

2. Qxy type shot blasting and painting macnine

No	Name	Unit	Type1	Type 2	Type 3
1	The width of the workpiece	mm	Under 2500	under3500	Under 4500
2	Model		QXY2000, QXY2200, QXY2500	QXY3000, QXY3200, QXY3500	QXY3500, QXY4000, QXY4500
3	Plate width (Max)	mm	The number after QXY	The number after QXY	The number after QXY
4	Plate thickness		3~60	3~60	3~100
5	The smallest section of profile	mm*mm	60*80	60*80	------
6	The largest section of profile	mm*mm	1000*300	1000*300	------
7	The shortest workpiece	mm	2400	2400	2400
8	Maximum workpiece	mm	12000	12000	12000
9	Conveyor speed	m/s	1~5(Note)	0.5~4(Note)	4~6(single)
10	Derusting Quality Level		ISO8501-1,1988	GB8923-88	(Bsa2.5)
11	Surface roughness	μm	40~70	40~70	40~70
12	Paint Film thickness	μm	15~25	15~25	15~25
13	Paint type		Quick-drying-type zinc-rich primer	Quick-drying-type zinc-rich primer	Quick-drying-type zinc-rich primer
14	Installed Power	kw	According to the actual situation	According to the actual situation	According to the actual situation
15	Compressed air consumption	m3/min	5~7	5~7	5~7
16	Compressed air pressure range	MPa	0.4~0.6	0.4~0.6	0.4~0.6
17	The first addition of the shot ball	T	8~10	8~10	12~16

We can do all kind of shot blaster according customer's need.

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.

2. The max. Width of the workpiece.

3. The max. Height of the workpiece.

4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)

5. The power supply you need( such as 380V, 3P, 50HZ)

6. Better to send us the workpiece photo or drawing.
