Steel Belt Cleaning Machine

Click to englarge
Steel Belt Cleaning Machine
Product Lablel: Steel Belt Cleaning Machine
Product Model: Steel Belt Cleaning Machine
Product Type: Steel Belt Cleaning Machine
Click: 14421
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction

Steel Belt Cleaning Machine

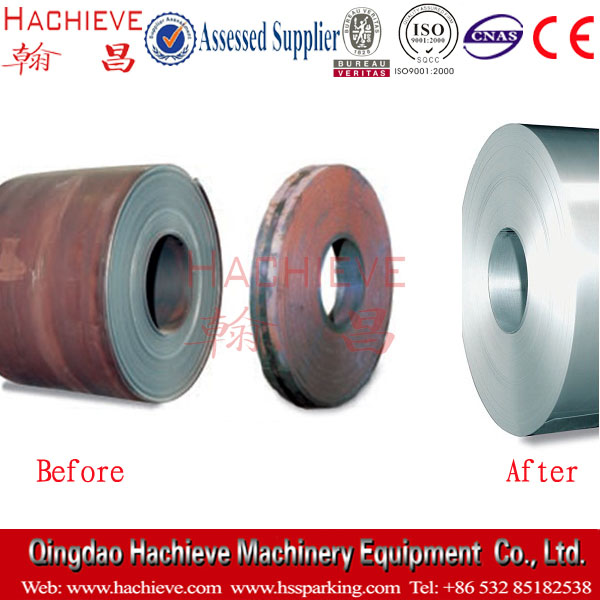

     This series of shot blasting machines belong to roller-peen type cleaning machine. The work pieces are sent by the rollers to the blasting chamber. The efficient blast wheel throws the projectile with high-speed onto the surface of the work piece to impact and scrape them. This system is specially used for blast cleaning of the hot-rolled stainless steel strip, to eliminate its surface oxide.


product name

Q6915ZA2

Q696Z

cleaning sizemm

3-12*1000-1500

2-5*500

shot blasting speedm/s

76

78

speed of steel beltm/min

15

35

lifting amount of the hoistT/h

300

200

separating amount of the separator (T/h)

300

200

Dedusting total air volumem3/h

25000

25000



















We can do all kind of shot blasitng machine according customer's need.

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.
