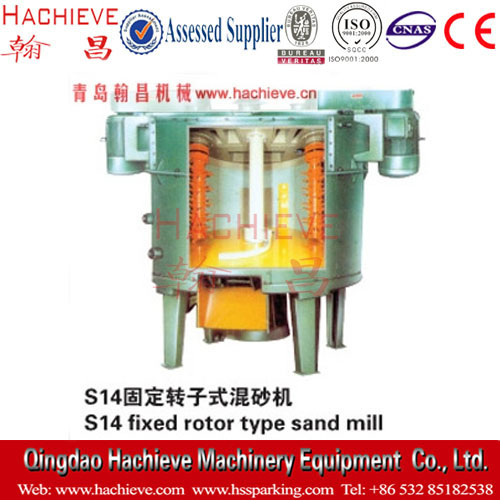

Rotor type sand Mixer

Click to englarge
Rotor type sand Mixer
Product Lablel: Rotor type sand Mixer
Product Model: Rotor type sand Mixer
Product Type: Rotor type sand Mixer
Click: 14448
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction

      Rotor type sand Mixer Mainly used to mix clay sand molding sand, especially suitable for mixing model with single sand, can also be used for mixing sand resin self hardening sand, sand, sand core, also can be used for glass, ceramics, refractory materials and other industries mixing all kinds of powder materials.

     The main principle is to use low rotating scraper drive materials in the basin of the machine is formed within the circulation movement speed of rotation of the rotor blades; both the sand to impact, and scraper with molding to shear stress, the sand occur between shock and intense friction, so as to achieve mixing speed, the quality of mixer the purpose of good and low energy consumption.

Main technical parameters

Item    type

S1420S

S1425E

Disk Dia. mm

¢2000

¢2500

Once feeding KG

1500

3000

Productivity (T/H)

40

90

Scraper power

37

55

Rotor power

2*18.5

2*37

Scraper Speed

34.5

26

Rotor speed

420

350
