- Introduction

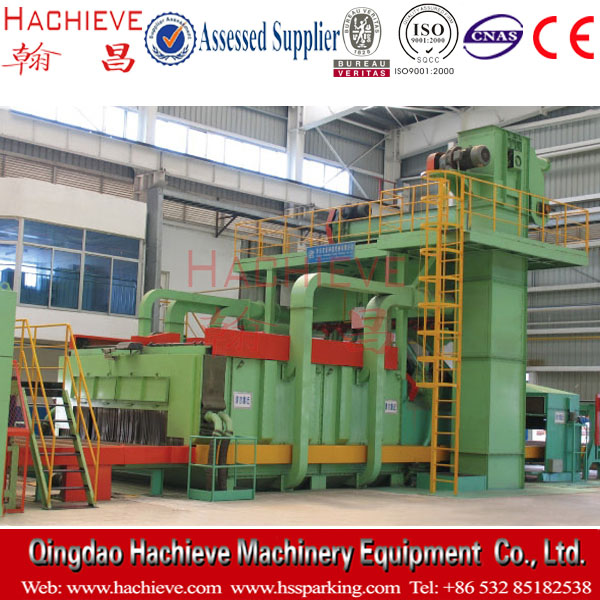

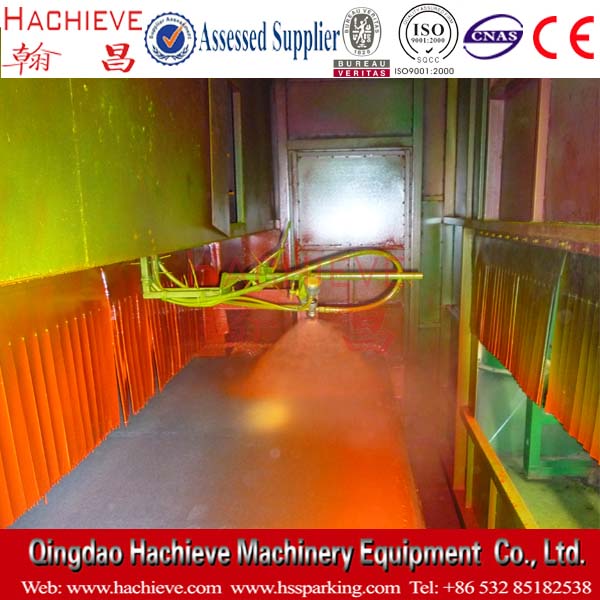

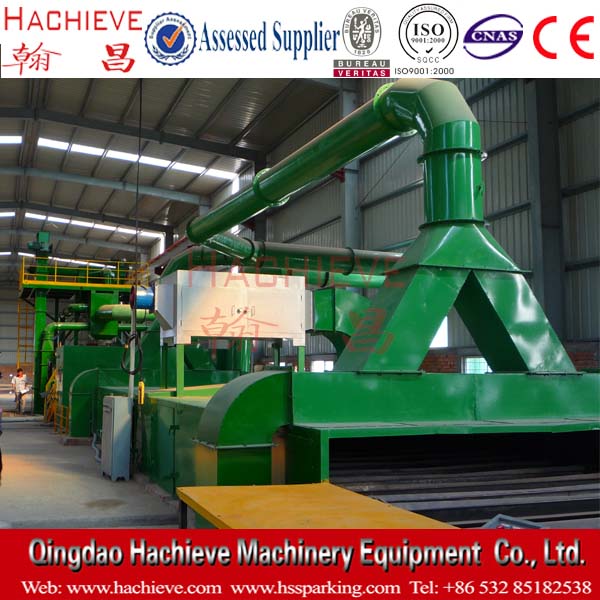

QXY series steel pretreatment line is drawn design and manufacture benefits of similar products from home and abroad.shotblast cleaning adopts high efficiency impeller head, curtain - style pills sand separator ; janitor uses a special high-strength nylon brush roller and high pressure Fan secondary cleaning devicePre - heating and drying .production part adopt many kinds of heating method ; paint Ministry adopts high - pressure airless spraying methodThe complete set of equipment adopts PLC control, large equipment belonging to the international advanced level. Mainly used for surface treatment of steel plate and steel ( refer to the preheating, removing rust, paint, drying )
|
Name
|
QXY1000
|
QXY1600
|
QXY2000
|
QXY2500
|
|
Clean plate size
|
length(mm)
|
≤12000
|
≤12000
|
≤12000
|
≤12000
|
|
width(mm)
|
≤1000
|
1600
|
2000
|
2500
|
|
thickness(mm)
|
3-10
|
3-10
|
2-200
|
5-30
|
|
Workpiece transfer speed
(m/s)
|
0-4
|
1-8
|
1-5
|
2-4
|
|
Paint film thickness(um)
|
15-25
|
15-25
|
15-25
|
15-25
|
|
Motor power(Kw)
|
300
|
450
|
490
|
460
|
|
Outline size(mm)
|
51500*5100*6850
|
7800*7400*62000
|
62000*12000*7230
|
6800*6200*54000
|
|
Name
|
QXY3000
|
QXY3500
|
QXY4000
|
QXY4500
|
|
Clean plate size
|
length(mm)
|
≤12000
|
≤12000
|
≤12000
|
≤12000
|
|
width(mm)
|
3000
|
3500
|
4000
|
4500
|
|
thickness(mm)
|
3-60
|
5-35
|
5-50
|
4-48
|
|
Workpiece transfer speed
(m/s)
|
0.5-4
|
2-4
|
2-4
|
1-6
|
|
Paint film thickness(um)
|
15-25
|
15-25
|
15-25
|
15-25
|
|
Motor power(Kw)
|
614
|
560
|
1370
|
850
|
|
Outline size(mm)
|
55545*12655*7782
|
7800*6800*67000
|
8000*7600*81000
|
180000*12000*7400
|
it can be used to surface blasting and dust removing .
|
