- Introduction

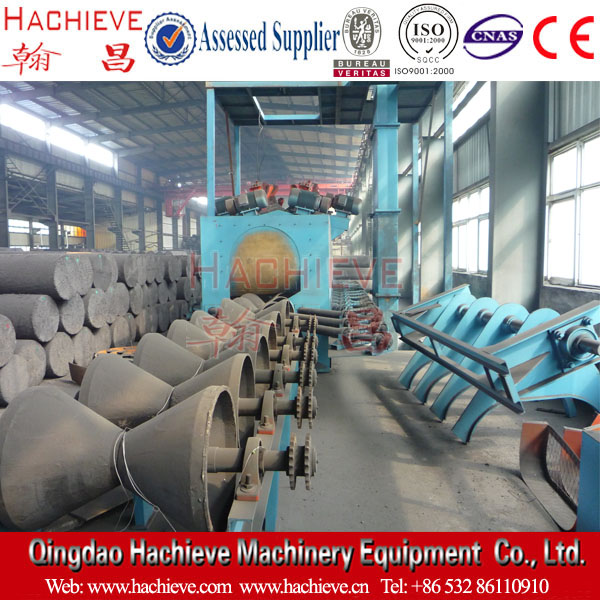

This shot blasting machine is to clean up the carbon electrodes, carbon electrodes sent the workpiece to feed rollers by the feeding system,the feed roller admitted to the carbon electrode cleaning chamber, and use efficient blast wheel to projectile steel ball in high-speed on the surface of workpiece, impacting and scraping to clear metallurgical coke on the surface of workpiece, after shot blasting, the workpiece is blowing through the high-pressure fan, workpiece through a roller to the discharge system, led by unloading car workpiece transported to a horizontal rail.
technical parameters:
The main technical parameters
|
Clean carbon pole Size(mm)
|
Length 1850-3100
|
Diameter 325-800
|
Shot Blasting amount(Kg/min)
|
480*8
|
The single largest weight(Kg)
|
3000
|
Lifting capacity(T/h)
|
200
|
conveying speed(m/min)
|
1.5-3
|
Shot Blasting amount(Kg)
|
350*4
|
Projectile speed(m/s)
|
78-82
|
Dust air volume(m3/h)
|
20000
|
|
