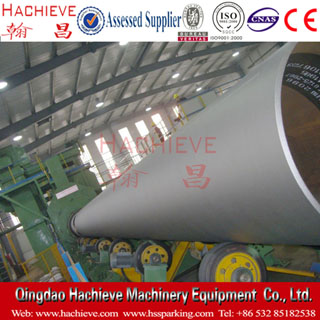

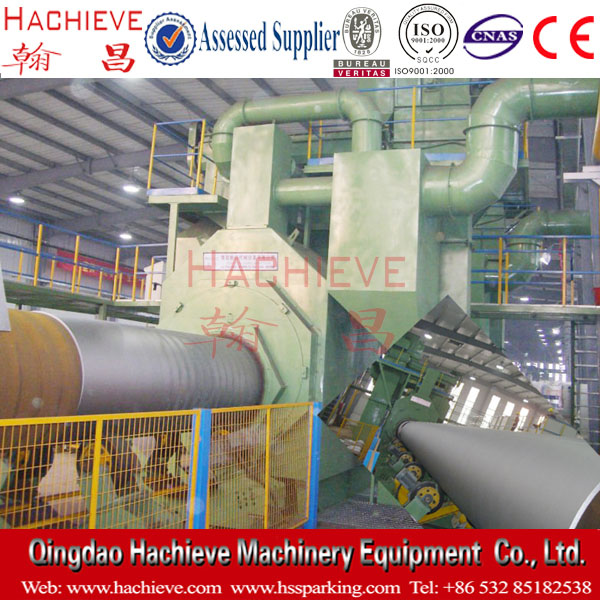

QG series of pipe wall-peen shot blat cleaning machine

     QG Series Steel pipe Shot dedicated processor inside and outside the wall for the steel and steel products to deal with the outer surface of the shot blasting to remove the oxide layer and debris such as welding slag, showing a metallic luster, to increase their surface area in order to facilitate the workpiecepainting    Characteristics: Blast wheel arranged in a suitable location (such as room or the side of body below), the workpiece edge to edge into the rotation, will enable the different effect of diameter of the pipe line Shot in consistent

We go further

      In the case of this type of equipment (Based on user requirements)，We designed based on the Siemens (SIEMENS) panel of human-machine interface operation. Production process, the pill is expected of the circulatory system (pill sand separator, bucket elevator, screw conveyor, pellet controller, etc.), shot blasting, and mechanical and electrical transmission system, speed, etc. can be found in the state of the intuitive user interface display out. This software is also available via Profibus Siemens and other companies to exchange information on products, factory-level production process to achieve the sharing of information.

Steel pipe shot blasting cleaning machine man-machine interface

Technical parameters of this type of equipment：

    Workpiece diameter Ø10-2800mm
    Length：>6m
    Clean-up speed：0.5~4m

   Can be more than one series, to achieve a higher  clearance rate

Introduction

  Protecting chamber
  The chamber body wear rearguard protection. Shield protective nut pressed easy removal replacement.
Sealed steel import and export
   Given the specific characteristics of the workpiece cleaning, shot blasting machine designed for quick exchange of the door of the chamber body. When the clean-up of large-diameter workpieces, the replaced door Sandy; When cleaning small diameter of the workpiece when the door to put on small-bore. This could very well seal.
Workpiece drive mechanism
  Shot blasting machine of this type can be assigned a variety of workpiece drive mechanism，Such as Tire,、V-Ramp Roller and so on.

Blast wheel
   This machine’s blast wheel installed in the suitable location of the cleaning cabinet（Side or Top）. It can be very good clean-up different diameter of the workpiece.

    Another form of shot blasting the outer wall of the pipe cleaning machine. Two Shot Blast wheel in the browser layout of the upper body. Work side of the workpiece while rotating through the shot blasting clean-up room.

Key buyer Petrol China, Sinopec Notwork enterprise
