- Introduction

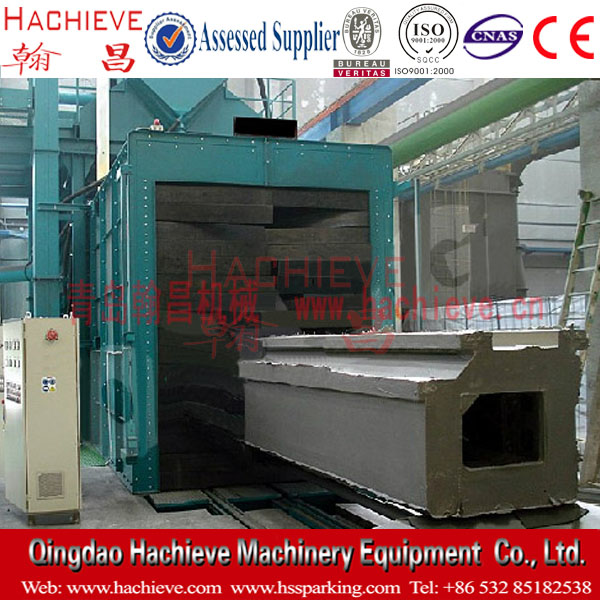

Q76series car-type airless and air shot-blasting machine
The series car-type cleaning machine, trolleys not only carrying the workpiece but also rotation of the workpiece to get a comprehensive and effective clean-up, just a cleaning chamber, the more complex structure of the workpiece by shot blasting, so that the workpiece to clean up thoroughly, projectile The circulatory system is also more compact, small footprint machine, energy consumption is low relative to other cleaning equipment. For the surface cleaning and strengthening of steel structures and castings, more suitable for the thick billet surface rust and clean-up of the surface oxide is widely used in casting, forging, machinery, iron and steel industry.
Technical Parameter
|
Series No.
|
Model
|
Q765C
|
Q7610
|
Q7620
|
Q7630
|
Q7640
|
Q7650
|
Q7660
|
|
1
|
Size of cleaning workpiece（mm）
|
Φ2000*730
|
Φ2500*860
|
Φ2500*1100
|
Φ3700*980
|
Φ4000*1120
|
Φ4850*1 280
|
Φ5000*1280
|
|
2
|
Carrying Capacity of car-type platfrom（Kg）
|
5000
|
10000
|
20000
|
30000
|
40000
|
50000
|
60000
|
|
3
|
Abrasive flow rate （Kg/min）
|
250*2
|
250*3
|
250*4
|
250*5
|
250*6
|
250*6
|
250*7
|
|
4
|
Ball blast for workpiece air pressure（Mpa）
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
|
5
|
Compressed air consumption（m3/min）
|
6.5
|
6.5
|
6.5
|
6.5
|
6.5
|
6.5
|
6.5
|
|
6
|
Lifting amount of elevating conveyor（T/h）
|
30
|
45
|
60
|
75
|
90
|
90
|
105
|
|
7
|
Separating amount of separator(T/h)
|
30
|
45
|
60
|
75
|
90
|
90
|
105
|
|
8
|
Dust-removing capacity（m/3h）
|
16000
|
20000
|
25000
|
30000
|
35000
|
35000
|
40000
|
|
9
|
Power（Kw）
|
54
|
72
|
91
|
115
|
148
|
162
|
188
|
|
10
|
Outline size（mm）
|
9000*5200
*9290
|
14900*5500
*8100
|
16900*6540
*10028
|
9168*7680
*10874
|
15000*8200
*11000
|
15800*8600
*11960
|
16800*8670
*11800
|
|
