This work table and sliding table with stright line rail systems, when compared to traditional roller : Straight rail have large capacity , very high precision, small size, easy to set up, simplified bed structure, set the rail cover to prevent dust from entering, so as to ensure the quality of the workpiece grinding, extending the life of the sliding system. Grinding head adopts motor pulley driven and compensation can be performed manually or hydraulic cylinders . Table rotary table with slewing bearing and hydraulic oscillating cylinder, slewing disk drive, and workpiece localization is precise ; hydraulic cylinder lock, will not shake the workpiece, so as to ensure the quality of grinding.

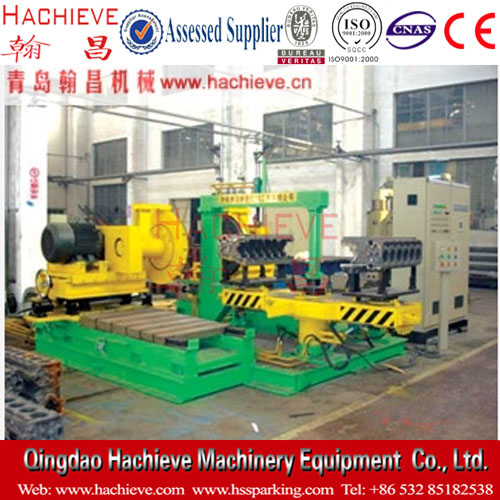

Applicable to the engine block, cylinder heads and similar fly casting and rough grinding of flat edges, burrs, create the necessary conditions for the subsequent finishing
technical parameter:
main technical parameter:
|
Grinding workpiece size(mm)
|
920×420×500
|
working efficiency((pc/hr)
|
≥30
|
Grinding workpiece side (side)
|
4
|
workpiece pulling speed(mm/s)
|
35
|
workpiece returning speed(mm/s)
|
105
|
Worktable Process (mm)
|
1700
|
Grinding Wheel(mm)
|
700
|
Grinding wheel rotation speed(rounds /min)
|
832
|
Grinding Head Qty.(pc)
|
2
|
Grinding Head power unit (Kw)
|
37
|
Grinding Head max openning distance (mm)
|
220-920
|
Power Unit (Kw)
|
89
|
recommended dust moving air blowing rate (m3/h)
|
12000
|
