- Introduction

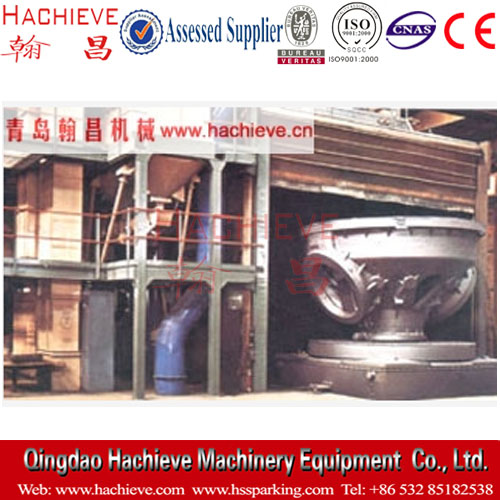

Q36 series car-type shot blast cleaning machine
This series shotblast machine enter into the room carrying the workpiece through the car , the trolley rotation workpiece blasting treatment for large and medium-sized cast pipe outer wall shot blasting to remove the workpiece surface sticky sand, rust,oxide, dirt, etc., so that the workpiece surface was metallic luster, eliminate internal stress in the workpiece, the workpiece anti-fatigue strength, increase film adhesion workpiece painting, and, ultimately, to improve the workpiece surface and internal quality
|
Series No.
|
|
Q365C
|
Q3610
|
Q3620
|
|
1
|
Size of cleaning workpiece（mm）
|
2500*1300
|
2500*1500*280
|
4000*3000*700
|
|
2
|
Car-type platform load capacity（Kg）
|
5000
|
10000
|
20000
|
|
3
|
Abrasive flow rate（Kg/min）
|
260*2
|
250*4
|
250*5
|
|
4
|
Lifting amount of elevating conveyor（T/h）
|
40
|
60
|
75
|
|
5
|
Separating amount of separator(T/h)
|
40
|
60
|
75
|
|
6
|
Dust removing rate（m/3h）
|
13200
|
24000
|
21000
|
|
7
|
Power（Kw）
|
39.2
|
188.45
|
185.25
|
|
8
|
Outline size（mm）
|
9000*4200*9290
|
14900*5500*8700
|
16900*6540*10020
|
|
