- Introduction

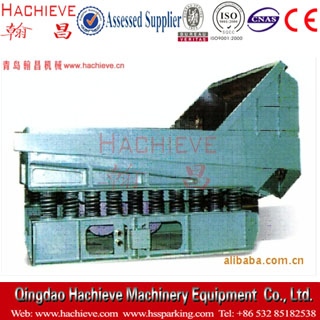

Feature: L26 Series Vibrating conveyor shakeout machine The main materials used in all the manganese steel plate welded structure, the overall annealing, reliable performance and smooth parking, and low cost, good effect of falling sand, long service life. The machine has a conveyor, sand is transported from ahead of equipment, access to the hoist directly, reduce transportation equipment, greatly reduces the depth of the pit.
|
|
L2674
|
L26710
|
L26715
|
L26720
|
|
Payload(T)
|
4-5
|
10
|
15
|
20
|
|
Grid size(mm)
|
2100×2000
|
3000×2000
|
3200×2800
|
4500×2700
|
|
Installed power(KW)
|
5.5×2
|
7.5×2
|
12×2
|
12×4
|
|
Centrifugal force(KN)
|
75×2
|
130×2
|
160×2
|
160×2
|
|
Note: shakeout machine table size, payload can be designed and produced according to user requirements.
|
|
