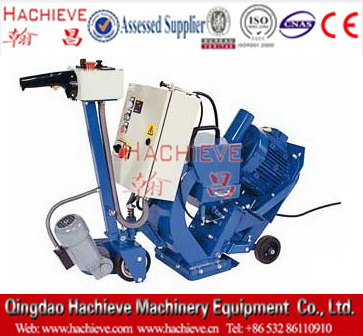

Floor Shot blasting machine

Click to englarge
Floor Shot blasting machine
Product Lablel: Shot blasting machine
Product Model: Shot blasting machine
Product Type: Floor
Click: 13564

VIP Free Hotline:

Equipment counsulting hotline:


Description: it’s one kind of cleaning machine

Application: Especially suitable to be used as the floor surface layer cleaning

Consist: Floor shot blasting machine is mainly composed of a machine frame, motor, transmission system, cleaning device and walking system. Cleaning device is composed of a percussion mechanism and a wire wheel, there is a key slot on percussion mechanism, which can make the knocking block sliding on the shaft. The knocking block use the centrifugal force produced by knocking mechanism to knock on the floor surface, forcing a firm sundries loose. Steel wire wheel cleans the laitance on floor surface by the tangential force. Percussion mechanism is made of metal, steel wire wheel is generally available ones.

Function: Floor shot blasting machine can reduce the labor intensity of workers, improve working efficiency

Working condition:

1.Work surface roughness < 20mm; no water and relatively dry slope < 25 °; 2.Environment temperature: -20 ℃ ~ 60 ℃; the surface temperature of steel plate is greater than the dew point above 3 ℃

3.Humidity: A, during steel surface blasting the relative humidity of not more than 90% B, during concrete

4.Height: 0 ~ 3000m; do not operate in the rain and snow weather
