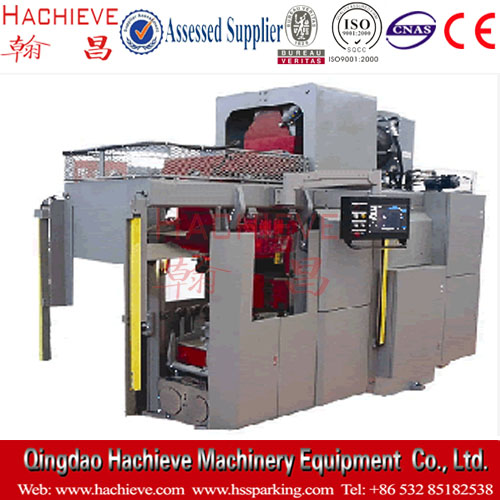

DSZ32 Series Horizontal parting flaskless shoot squeeze molding machine Parameter:
|
Type
|
Sand model size(L×W×Upper box Height / lower box Height)mm
|
Molding speed (sand moold/hour)
|
sand moold weight(kg)
|
Compaction pressure ratio(kgf/cm）
|
Outline dimensions(L×W×H)mm
|
|
DSZ325
|
483*355*140/114
|
180
|
68
|
10
|
3500*1600*3000
|
|
DSZ326
|
610*508*216/190
|
160
|
181
|
10
|
4000*1600*3200
|
|
DSZ327
|
762*610*305/280
|
120
|
350
|
10
|
4800*1900*3800
|
|
DSZ328
|
813*762*305/280
|
90
|
544
|
10
|
5100*1900*4000
|
DSZ32Series Horizontal parting flaskless shoot squeeze molding machine Technical characteristics
1.The use of advanced design concept, so that the model becomes a kind of high efficiency, easy work.With DSXZ32 series of conveyor line, achieve automation molding
2. Adopt the duplex template, one action, completion of the upper and lower box molding.Compaction pressure stepless can adjustable to Good Casting quality and hardness is greater than 90.
3. Adopt a proportional valve control the hydraulic operation, stable and reliable work.
4. Adopt a linear switch, ensure the accurate detection, close to zero error. Can be used in wireless location gap adjustment.
5. Adopt the new guiding mechanism, Guarantee there are no fault of the upper and lower sand moold.
6. stainless steel hopper and heating device, to prevent the sticky sand.
7. change templates easily, reduce the auxiliary time, suitable for a variety of flexible production.
8. Adopt the standard parts, reduces the maintenance time and cost.
9. Adopt the open software, is conducive to the maintenance and upgrading.
